Building Your First Multi-Agent System with CrewAI and LangChain

A Step-by-Step Beginner's Guide

Hey folks, it's been a while since my last post, I've been heads-down on several exciting projects. Life as a builder keeps me busy, but I'm thrilled to dive back in with this guide. Let's get started on demystifying multi-agent systems!

If you're excited about AI but overwhelmed by multi-agent systems, this tutorial is for you. We'll build a simple one from scratch to automate a workflow, like turning a product idea into a plan. Inspired by real apps that streamline product dev, this guide keeps things beginner-friendly: No advanced coding needed, just Python basics. By the end, you'll understand how to plan, build, and scale your own system for tasks like content creation or data analysis.

I'll explain roles: CrewAI orchestrates agents (like a team manager), LangChain provides tools (e.g., web search), and OpenAI powers the "brains" (LLMs for reasoning). We'll add a basic backend (FastAPI) to save data, and cover PRD planning plus methodologies for deciding when/how to use multi-agents. Plus, we'll dive into Agentic AI Design Patterns to give you a structured way to enhance your systems.

Why this? Multi-agents automate repetitive processes, saving time. Let's dive in!

Step 1: Understand Multi-Agent Systems and When to Use Them

Before coding, know why multi-agents: They mimic a team, each agent handles a specialty, collaborating via tasks. Benefits:

• Automation: Map your workflow (e.g., "Idea → Research → Plan").

• Scalability: Add agents as needed.

• Efficiency: Saves hours on research, planning, etc.

Example use: Turn "Build a fitness app" into market insights, requirements, and a build plan.

Methodology to Decide on a Multi-Agent System: There's no one "official" method, but a practical framework is the Agentic Design Cycle (inspired by CrewAI/AutoGen best practices):

1. Identify the Process: Map your workflow (e.g., "Idea → Research → Plan"). If it has 3+ interdependent steps, multi-agents shine.

2. Decompose into Roles: Break into agent roles (e.g., Researcher for data, Planner for synthesis). Use if steps need expertise or tools.

3. Choose Workflow Type: Sequential (step-by-step), Hierarchical (manager oversees subs), or Parallel (simultaneous). Start sequential for simplicity.

4. Evaluate Tools/LLMs: Need external data? Add LangChain tools. For reasoning, use OpenAI.

5. Test Feasibility: Prototype single agents first; scale if it reduces manual work by 50%+.

6. Iterate: Add error handling, backends for persistence.

Example: For our "Idea to Plan" system, we decompose: Validate idea (feasibility check) → Research (gather info) → Plan (create outline) → Visualize (suggest next steps). It's sequential, as each builds on the last.

When NOT to Use: For simple queries (use single LLM). Methodology tip: If your process involves loops/collaboration, go multi-agent, it's 2025's efficiency hack!

Step 1.5: Explore Agentic AI Design Patterns

To make your multi-agent system smarter and more autonomous, incorporate agentic AI design patterns. These are reusable strategies that enhance LLMs by adding autonomy, like decision-making or tool use. As of 2025, they're key for dynamic workflows far beyond fixed rules (e.g., RPA) or basic AI (e.g., prompt-response).

The four core patterns (from emerging AI research) are:

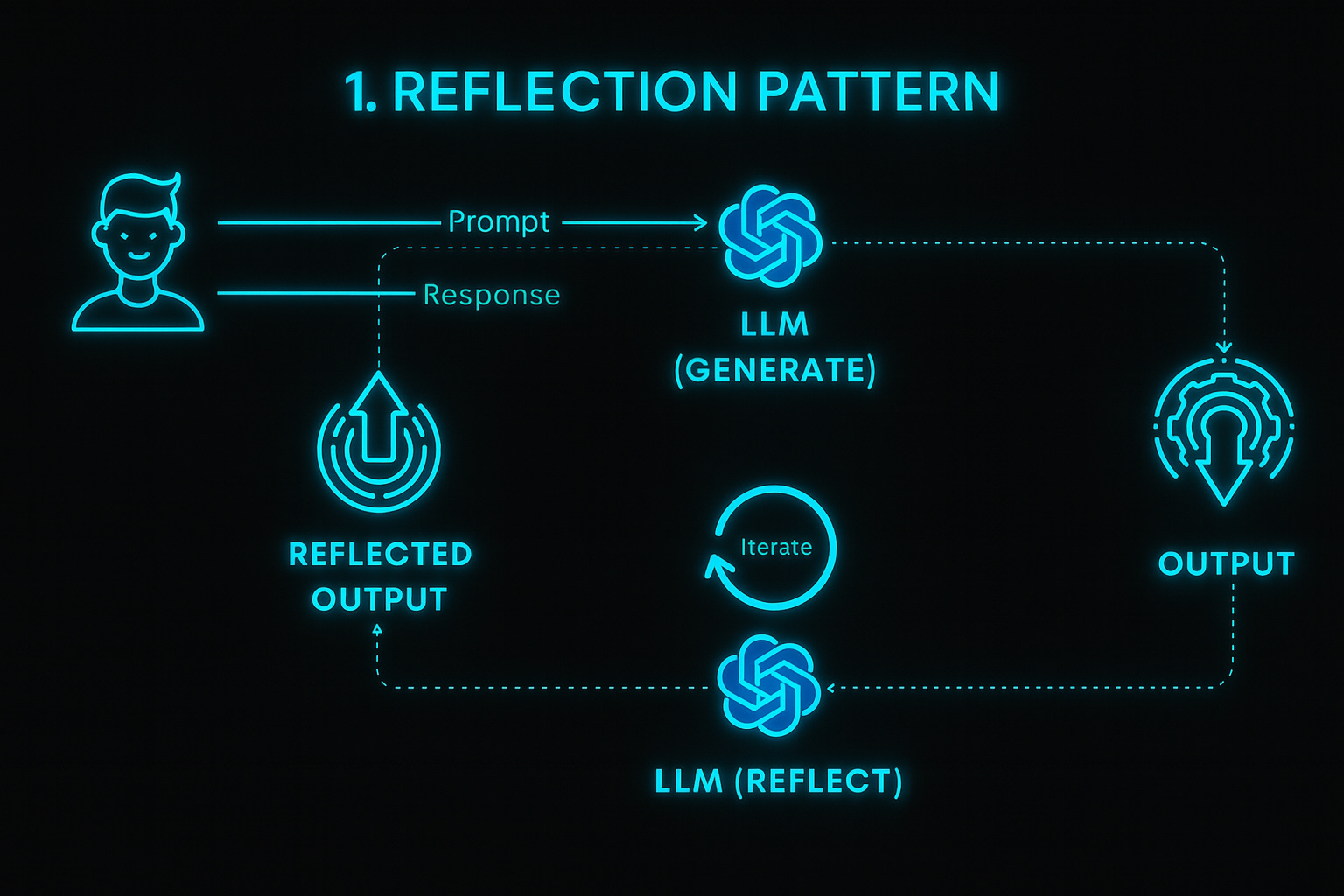

1. Reflection Pattern: Agents self-evaluate and improve outputs iteratively. Like a built-in feedback loop, spot errors, refine, repeat.

   • Why Use It?: Boosts accuracy over time.

   • Simple Example: In code gen (e.g., GitHub Copilot), an agent reviews generated code for bugs, tests in a sandbox, and optimizes.

   • In Your System: Add to a planner agent: "Review your plan for gaps and suggest fixes."

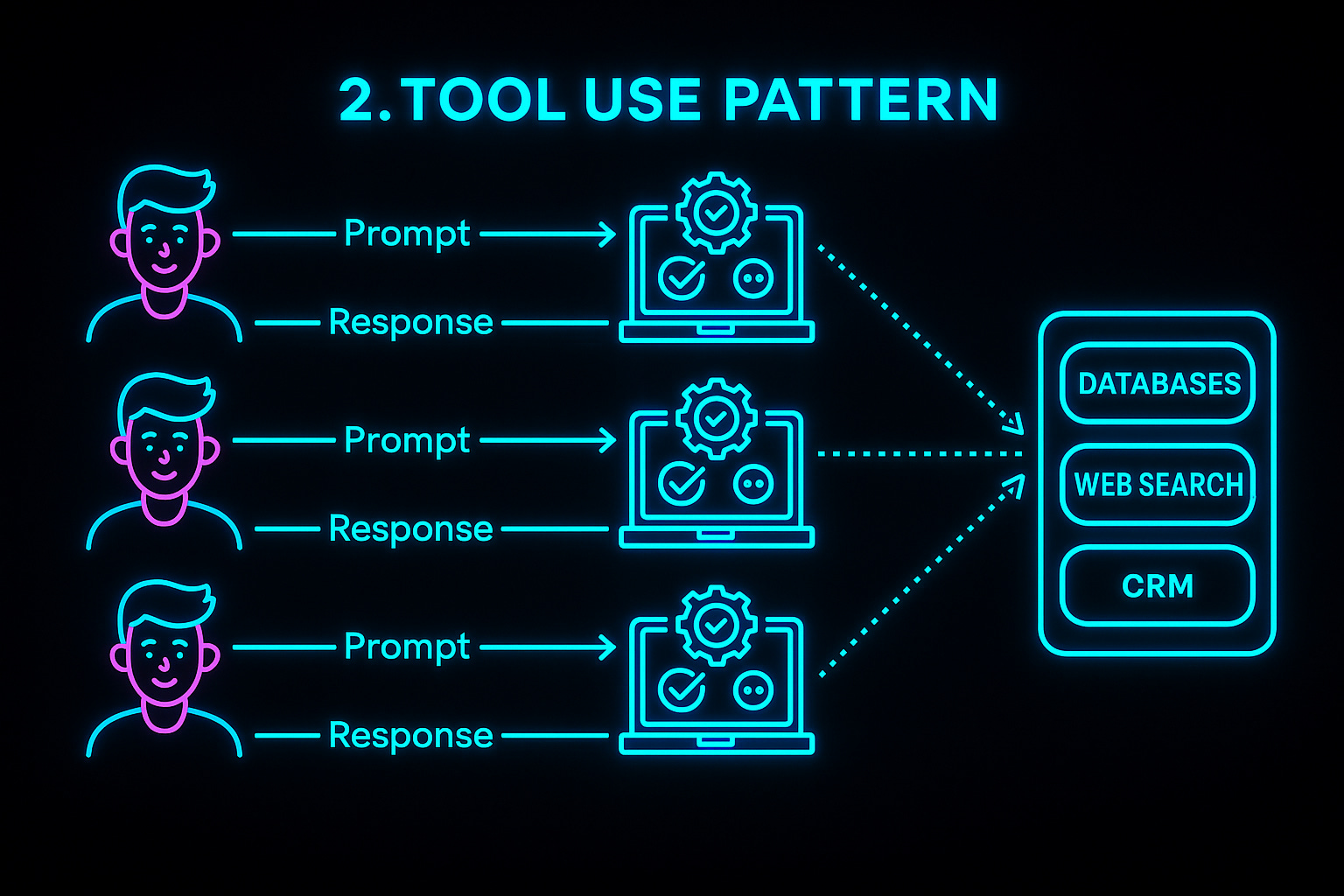

2. Tool Use Pattern: Agents call external tools (e.g., APIs, search) to access real-time data beyond their training.

   • Why Use It?: Handles dynamic tasks; protocols like MCP standardize calls.

   • Simple Example: An agent queries a web tool for live info (e.g., "Who won Euro 2024?") and synthesizes a response.

   • In Your System: Use LangChain tools for search our researcher agent will demo this.

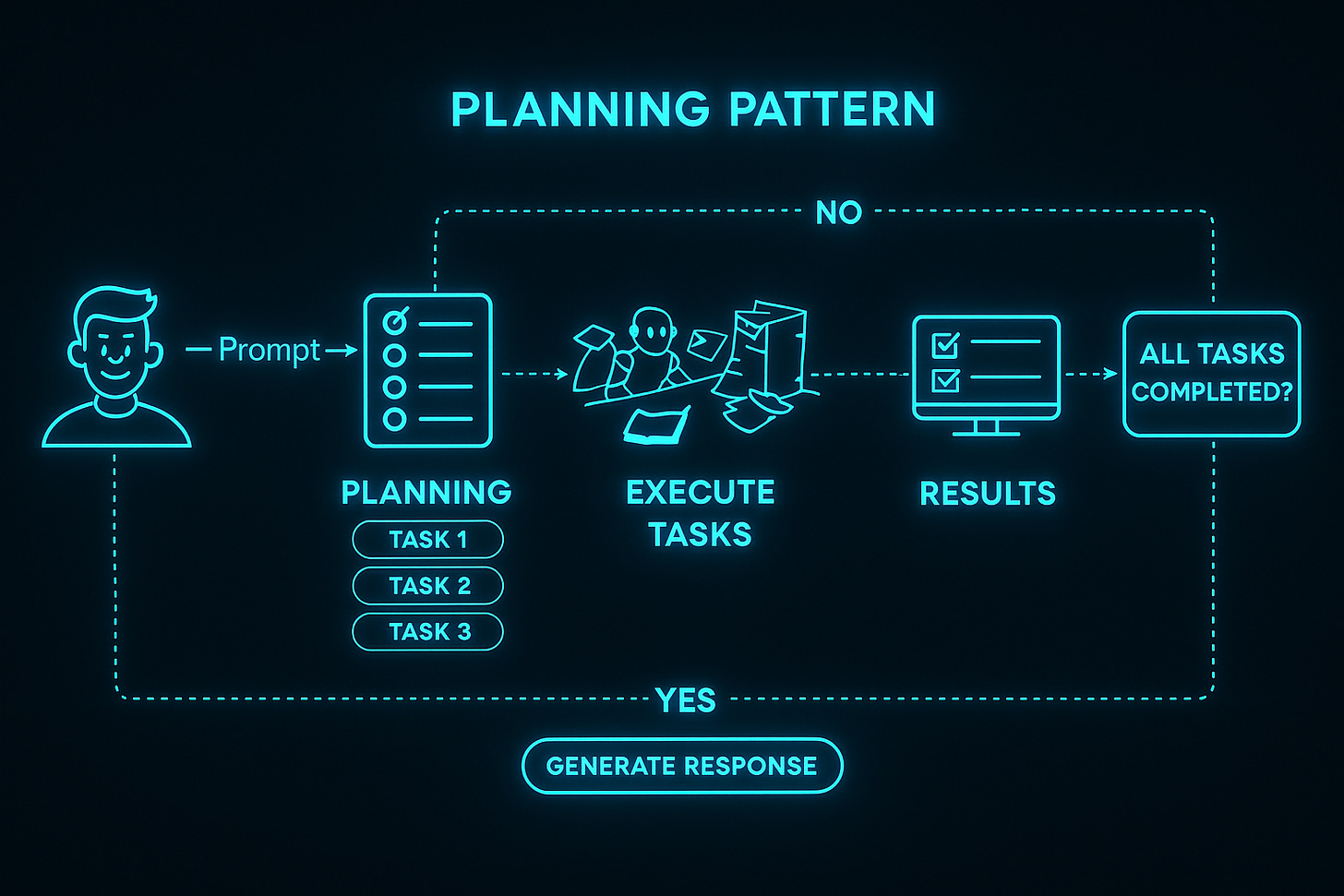

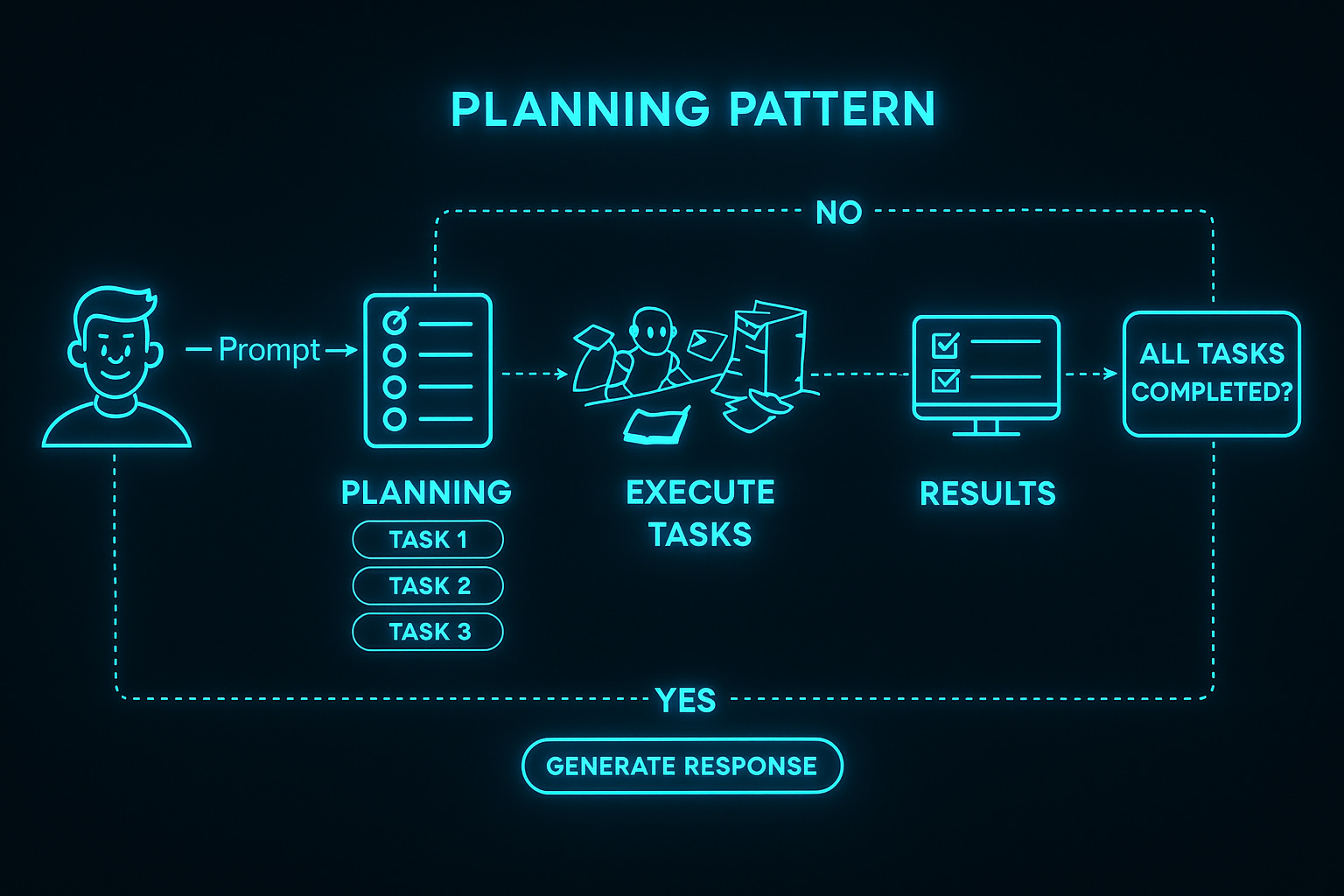

3. Planning Pattern: Agents break big tasks into subtasks, sequencing them logically (linear or parallel).

   • Why Use It?: Manages complexity without overwhelm.

   • Simple Example: HuggingGPT plans subtasks like data processing by connecting LLMs to models (e.g., Hugging Face).

   • In Your System: CrewAI's task chaining does this e.g., research before planning.

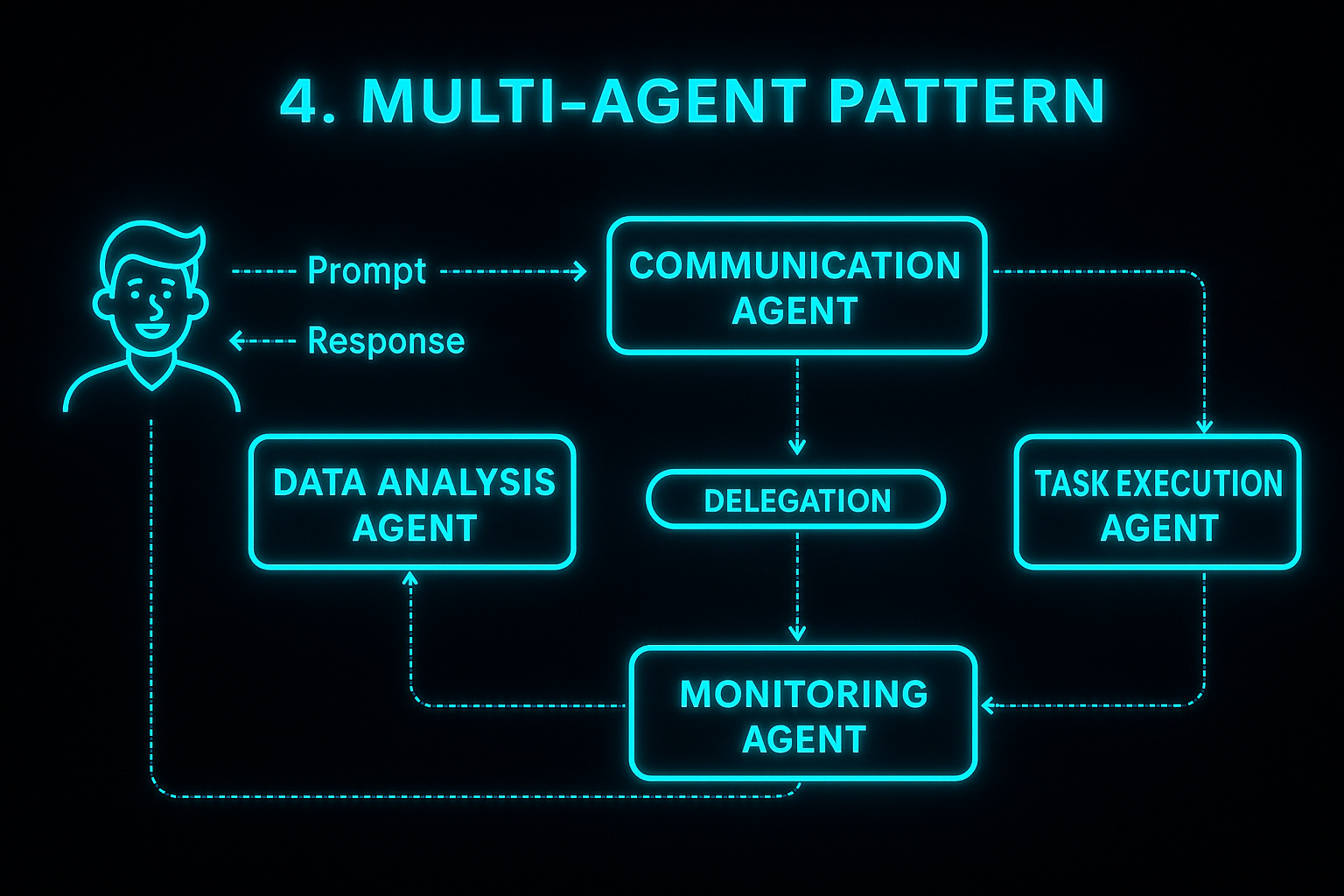

4. Multi-Agent Pattern: Multiple agents collaborate, delegating roles (e.g., one researches, another plans).

   • Why Use It?: Mimics teams for better results; uses protocols like A2A for communication.

   • Simple Example: Frameworks like AutoGen or LangChain enable this e.g., ChatDev for software dev.

   • In Your System: Our crew of agents shows delegation in action.



5. Tip: Start with one pattern (e.g., tool use), then layer others. In CrewAI, patterns fit naturally, e.g., add reflection via agent backstories like "Always review your output."

Step 2: Plan Your System with a PRD (Product Requirements Document)

Recreate a mini-PRD before building agents, it's like a blueprint for your AI team. This ensures clarity and avoids scope creep.

How to Create a PRD (Simple Template):

1. Problem: What workflow to automate? (E.g., "Manually researching ideas takes hours.")

2. Solution: Multi-agent system with 4 agents.

3. Features:

   • Input: Natural language idea.

   • Outputs: Research summary, plan, visuals.

   • Tools: Web search.

   • Backend: Save ideas/plans in a DB.

4. Requirements: Python 3.10+, OpenAI key, FastAPI for backend.

5. MVP Scope: Basic sequential flow; no UI yet.

6. Success Metrics: Runs in <1 min, accurate outputs.

Why PRD first? It guides agent roles like deciding "Researcher needs search tool." Spend 10-15 mins on this; it's key to structured building.

Step 3: Setup Your Environment

1. Install Python (3.10+).

2. Create/activate venv: python -m venv myenv && source myenv/bin/activate.

3. Install: pip install crewai langchain langchain-community langchain-openai fastapi uvicorn.

4. Set OpenAI key: export OPENAI_API_KEY=sk-your-key (get from OpenAI dashboard).

5. For backend: We'll use FastAPI (simple, async-friendly for APIs). Why? It's lightweight for saving data (e.g., ideas to a file/DB), scales easily, and persists outputs across runs, unlike memory-only agents.

Step 4: Plan and Build Your Agents

Agents are the "team." Plan roles via PRD, then code.

Roles Breakdown:

• CrewAI: Manages agents/tasks (orchestration, chaining).

• LangChain: Adds tools (e.g., search) for real-world data.

• OpenAI: Provides LLM (e.g., GPT-4o-mini) for agent "thinking."

Create file multi_agent.py:

python

from crewai import Agent, Task, Crew

from langchain.tools import Tool

from langchain_community.tools import DuckDuckGoSearchRun # LangChain tool

# LangChain Search Tool (why? Free, fast web access)

search_tool = Tool(

name="Web Search",

func=DuckDuckGoSearchRun().run,

description="Search web for info."

)

# Agents: Planned from PRD

researcher = Agent(

role='Researcher', # Gathers data

goal='Find market/tech info on ideas',

backstory='Expert in quick, accurate searches.',

tools=[search_tool], # LangChain powers this

llm='gpt-4o-mini', # OpenAI for reasoning

verbose=True

)

planner = Agent(

role='Planner', # Organizes into plan

goal='Create actionable outline from research',

backstory='Turns chaos into structure.',

llm='gpt-4o-mini', # OpenAI

verbose=True

)

visualizer = Agent(

role='Visualizer', # Suggests visuals

goal='Propose diagrams/images for clarity',

backstory='Makes ideas visual.',

llm='gpt-4o-mini', # OpenAI

verbose=True

)

How built: Define role/goal/backstory for personality; add tools/LLM.

Step 5: Define Tasks and Orchestrate the Crew

Tasks = Agent jobs. Chain them sequentially.

Add to script:

python

# Tasks: Sequential from PRD

research_task = Task(

description='Research: {idea}',

agent=researcher,

expected_output='Key findings summary.'

)

plan_task = Task(

description='Plan from: {research_task.output}',

agent=planner,

expected_output='Bullet-point plan.'

)

visual_task = Task(

description='Visuals for: {plan_task.output}',

agent=visualizer,

expected_output='Diagram ideas.'

)

# Crew: Orchestrates (CrewAI magic)

crew = Crew(

agents=[researcher, planner, visualizer],

tasks=[research_task, plan_task, visual_task],

verbose=2 # Logs steps

)

# Run

idea = "Fitness tracking app"

result = crew.kickoff(inputs={'idea': idea})

print(result)

Run: python multi_agent.py. CrewAI chains outputs automatically.

Step 6: Add a Simple Backend with FastAPI

Why FastAPI? Fast, modern; saves data (e.g., ideas/results) to a file/DB for reuse—persistent unlike in-memory runs. What’s saved? User ideas, agent outputs (e.g., in JSON).

New file backend.py:

python

from fastapi import FastAPI

import json

app = FastAPI()

# Simple in-memory DB (replace with SQLite for real)

data = {}

@app.post("/save_idea")

def save_idea(idea: str, result: str):

data[idea] = result

with open('outputs.json', 'w') as f:

json.dump(data, f)

return {"status": "saved"}

# Run: uvicorn backend:app --reload

Integrate in multi_agent.py: After crew.kickoff, post to backend via requests lib (pip install requests).

Why save? Reuse plans, track history, essential for real apps.

Step 7: Test, Iterate, and Scale

• Test: Run with different ideas; check verbose logs.

• Iterate: Add error handling (try/except in tasks).

• Scale: Switch to hierarchical (add manager_agent); integrate more LangChain tools (e.g., PDF reader).

• Methodology Reminder: Use Agentic Design Cycle to decide expansions.

Wrapping Up

Congrats! 🥳 you built a multi-agent system! CrewAI handles the team, LangChain adds smarts, OpenAI powers decisions. Customize for your needs; start small. Questions? Comment! Subscribe for more.

Happy automating! 🚀
